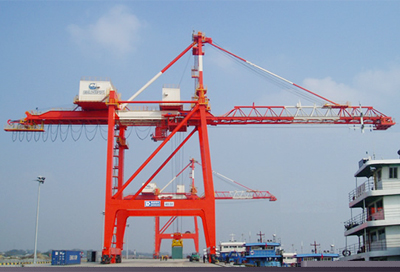

Typical capacity under spreader 40t, Max. outreach 45m, widely used in medium container terminal. Max. wheel load from 25t and 35t, dramatically cut down the construction cost for terminal

Main Specifications :
Capacity (under spreader) : 40t – 35t – 30t
Outreach : 45m – 35m – 30m
Rail Span : 10.5m, 16m, 22m
Lifting Height : 28m
Hoisting Speed : Loaded 50 m/min, Empty 100 m/min
Gantry Speed : 150 m/min
