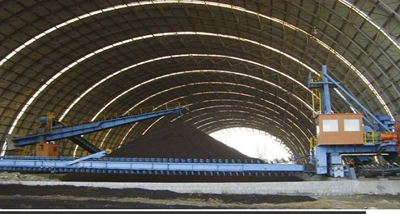

The traditional manual push-button control system is replaced by an Ethernet-based fieldbus industrial PC control system for intellectualized management of stacker and reclaimer featuring unattended operation, self-diagnostics and remote monitoring. ANSYS finite element software and Proe simulation software were applied to optimize steel structure design with more natural 3-D motions that is more similar with real working conditions. A number of proprietary and patented technologies are adopted. Besides, all hydraulic systems are tested in our high-performance hydraulic test station that is more similar with real working conditions and ensuring proper functioning. The integration of mechanical, electrical and hydraulic systems helps realize full automation and intellectualization. By renovating a traditional industry with high and new technologies, our bridge type scraper reclaimer represents the state-of-the art expertise in the industry.

Application: Mainly applied in reclaiming coal in stock yards as one of the most important devices in the production system used in power plants, coal mines, metallurgy works and chemical works.

Specification	:	12m - 42m
Capacity (min. / max.)	:	50t/h - 2.500t/h
