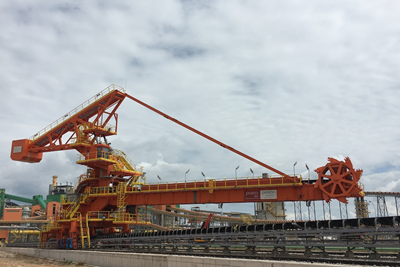

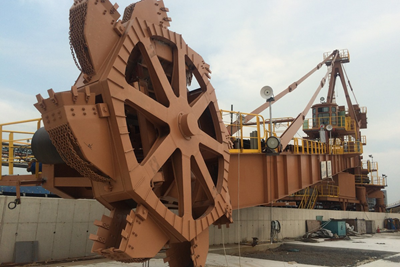

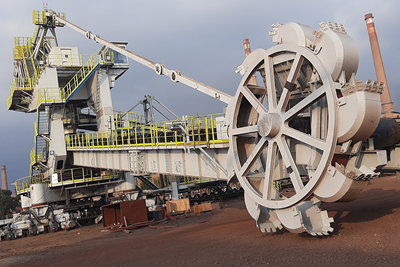

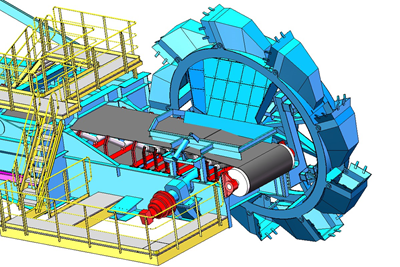

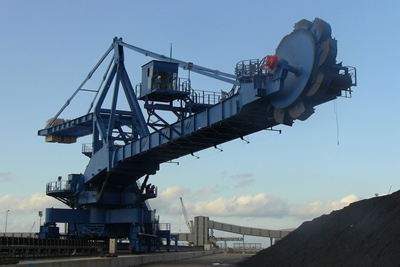

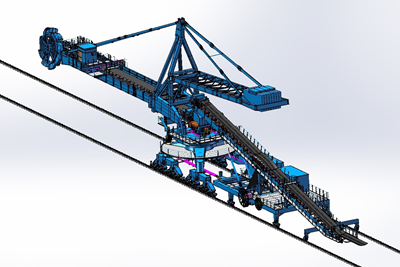

Boom type bucket-wheel stacker/reclaimer is a kind of large-scale loading/unloading machine developed for handling bulk materials continuously and efficiently in longitudinal storage in coal and ore stockyards for such fields as power, metallurgy, coal, building material and chemical industries. Its features and benefits include large slewing radius, high productivity, low power consumption and optimal environment protection solutions.

This machine, widely used in longitudinal raw material stockyard, is engineered to offer multiple stockyard solutions such as material direct conveying line and material fold back line.

Features:
• Steel structure design optimized with ANSYS software,
• Cutting-edge environmentally friendly and energy conserving design,
• Flender brand reducer drive technology
• Siemens brand automation system
• Advanced PLC control system; Video flow rate monitor helps increase feeding efficiency, reduce energy consumption, Prevent overload, improve system safety and lower operator’s workload, thus avoiding man-made accidents, reducing starting/ stopping times of stacker reclaimer while shortening run-on time with service life of the equipment extended,
• Sophisticated lubrication system helps reduce maintenance workload,
• Comprehensive after-sales service and timely spare part supply ensure safe and normal operation.





Specification	:	25m / 30m / 35m / 40m / 45m / 50m / 55m / 60m
Capacity (min. / max.)	:	50t/h – 8.000t/h

Çukurova Engineering has provided custom-made products for Eren Energy, CENAL Energy, Hidro-Gen Energy, Erdemir, İsdemir.

PHOTO GALLERY

•
•
•
•
•
•
•
